Monoblock

Monoblock

The Monoblock series is the ideal solution for the planing of laminated panels, boards, and glulam boards on either 2 or 4 sides.

Lifting system featuring either 4 or 6 chromium-plated columns, based on the size and type of machining material.

Heavy and strong, these machines are suitable to support great efforts without affecting machining precision and quality.

Reliable drawing system This series is durable and fit for smooth non-stop operation.

Download Data Sheet
Virtual Showroom
Request Information

Description

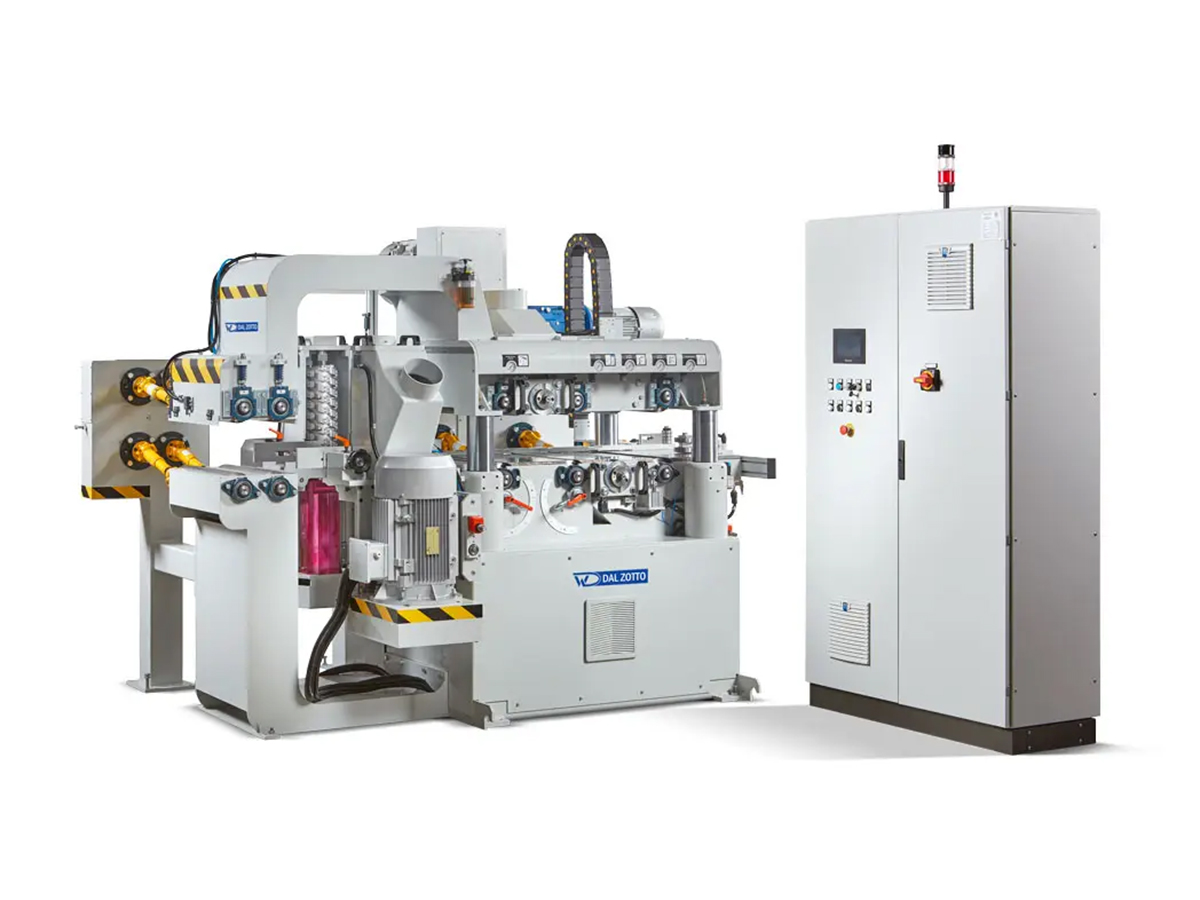

Monoblock 5040 - WD.

monoblock 5040 wd
Processing up to 500 x 400 mm on 4 sides

Monoblock 7030 - WD.

monoblock 7030 wd

Processing up to 700 x 300 mm on 4 sides

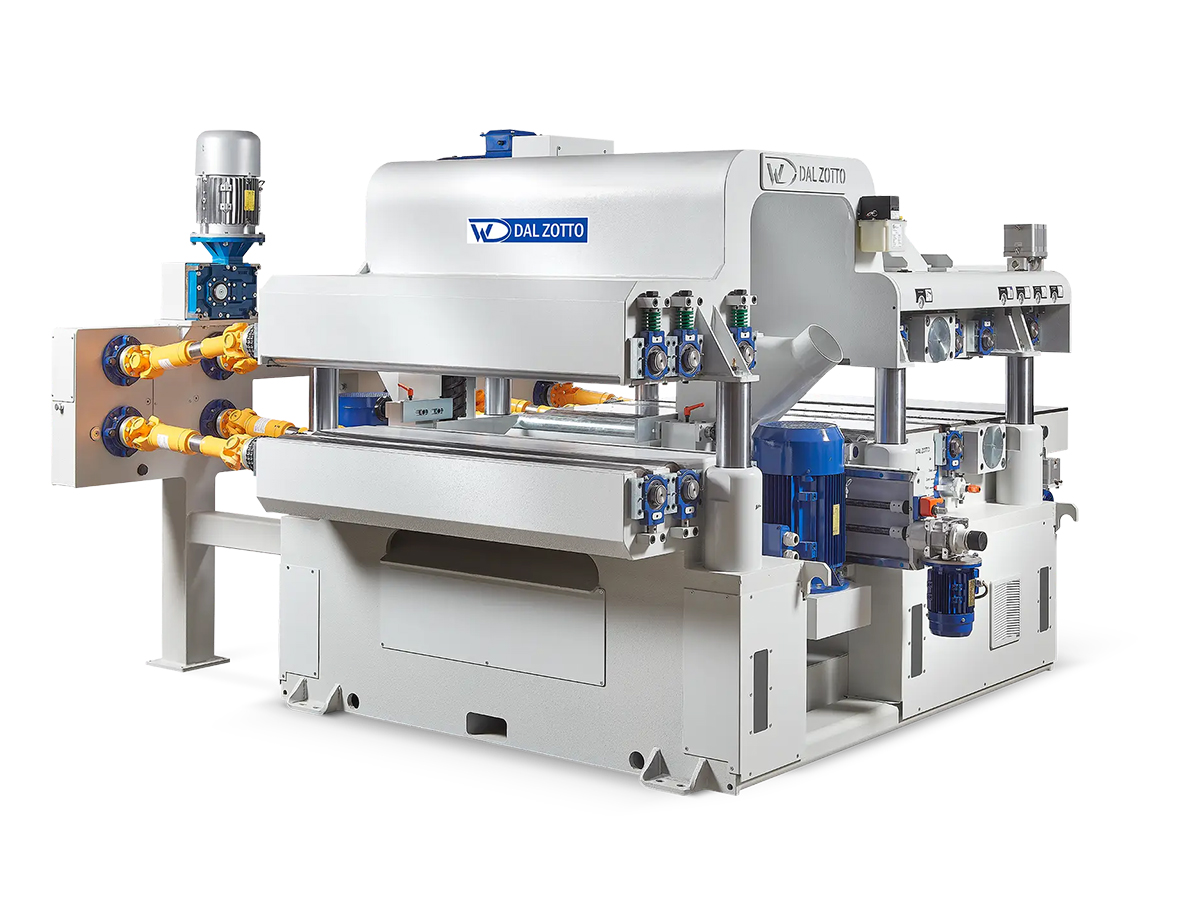

Monoblock 15025 - WD.

monoblock 15025 wd

Machining up to 1500 x 250 mm on 4 sides

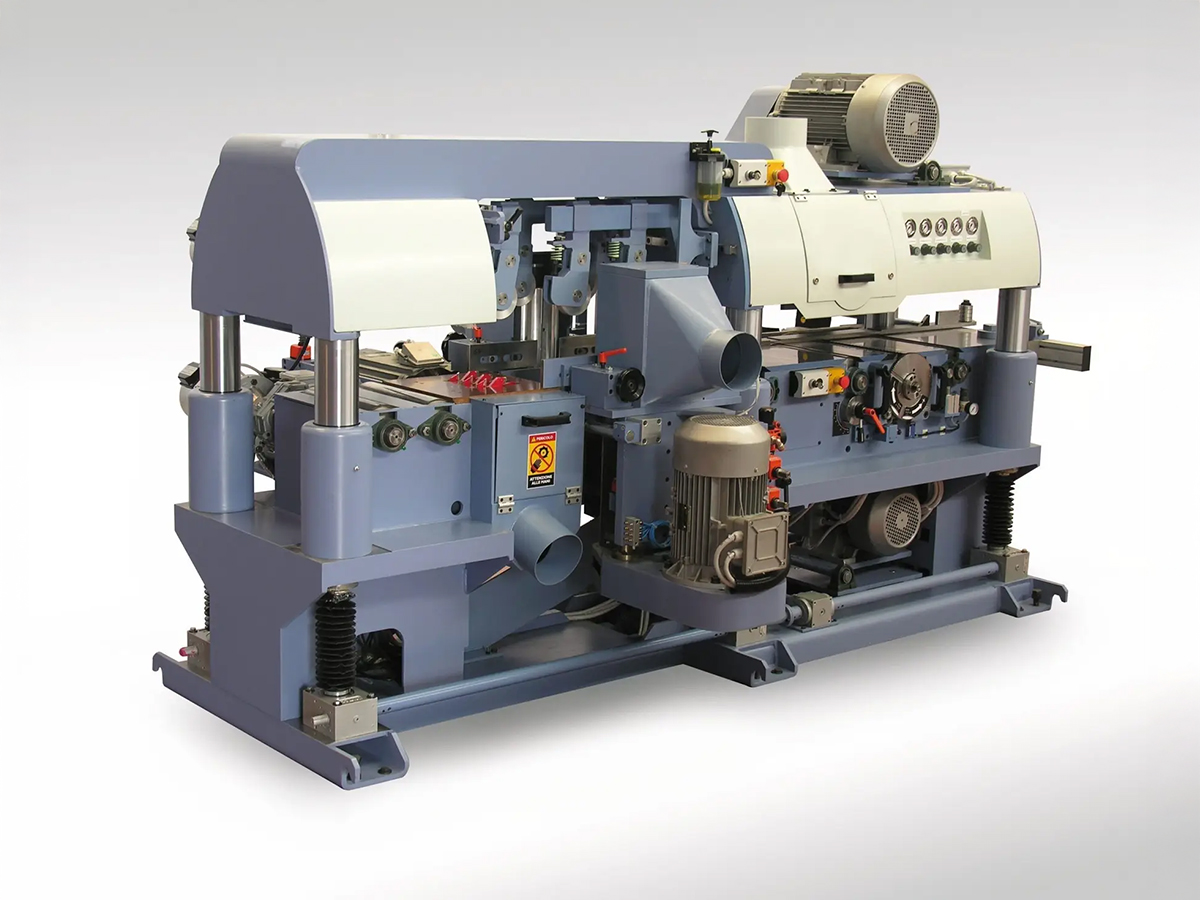

Monoblock 3330 - WD.

Machining up to 330 x 300 mm on 4 sides

Monoblock 3330 - WD.

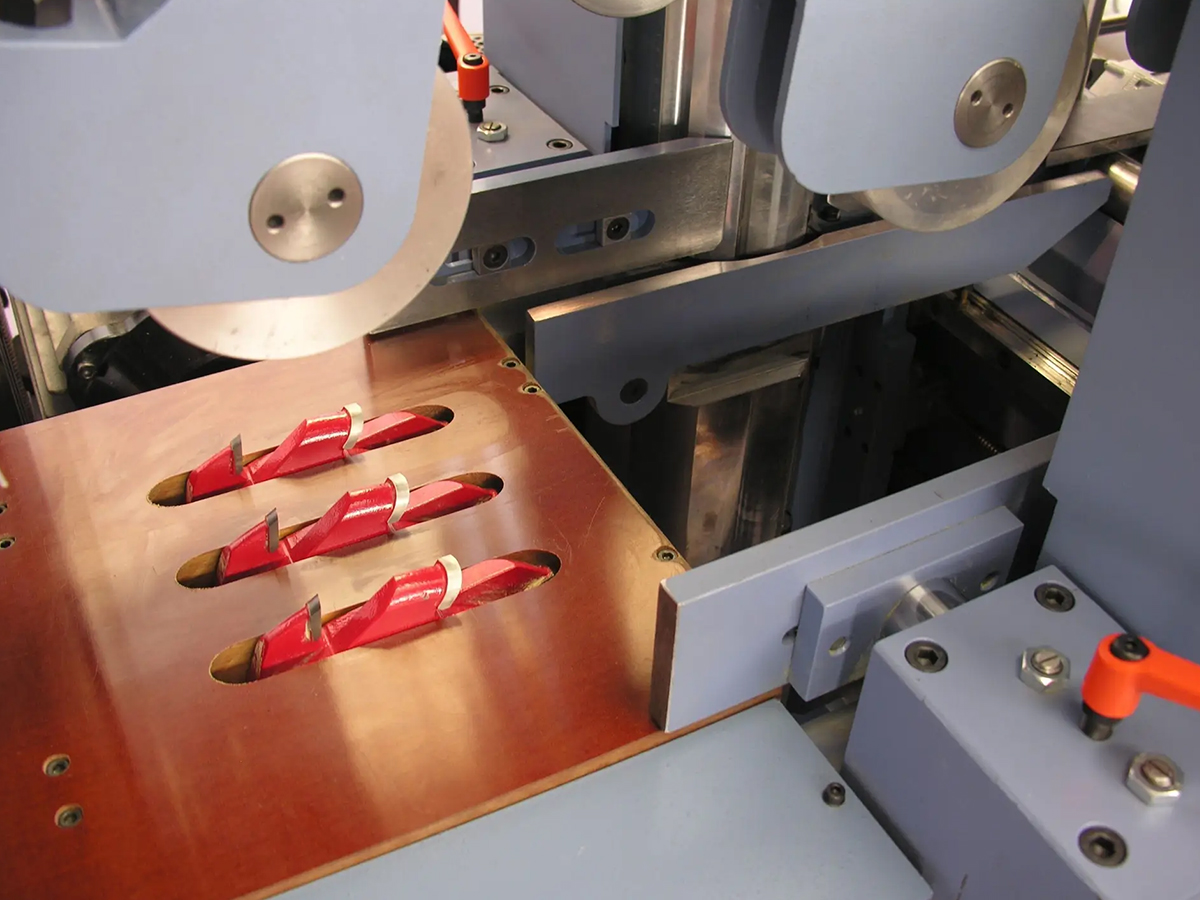

View of tools for lower grooving/slotting
View of tools for lower grooving/slotting

Monoblock 15025 - WD.

Machining up to 1500 x 250 mm on 4 sides | View of the feed system

Monoblock 3330 - WD.

Machining up to 330 x 300 mm on 4 sides

Monoblock 15025 - WD.

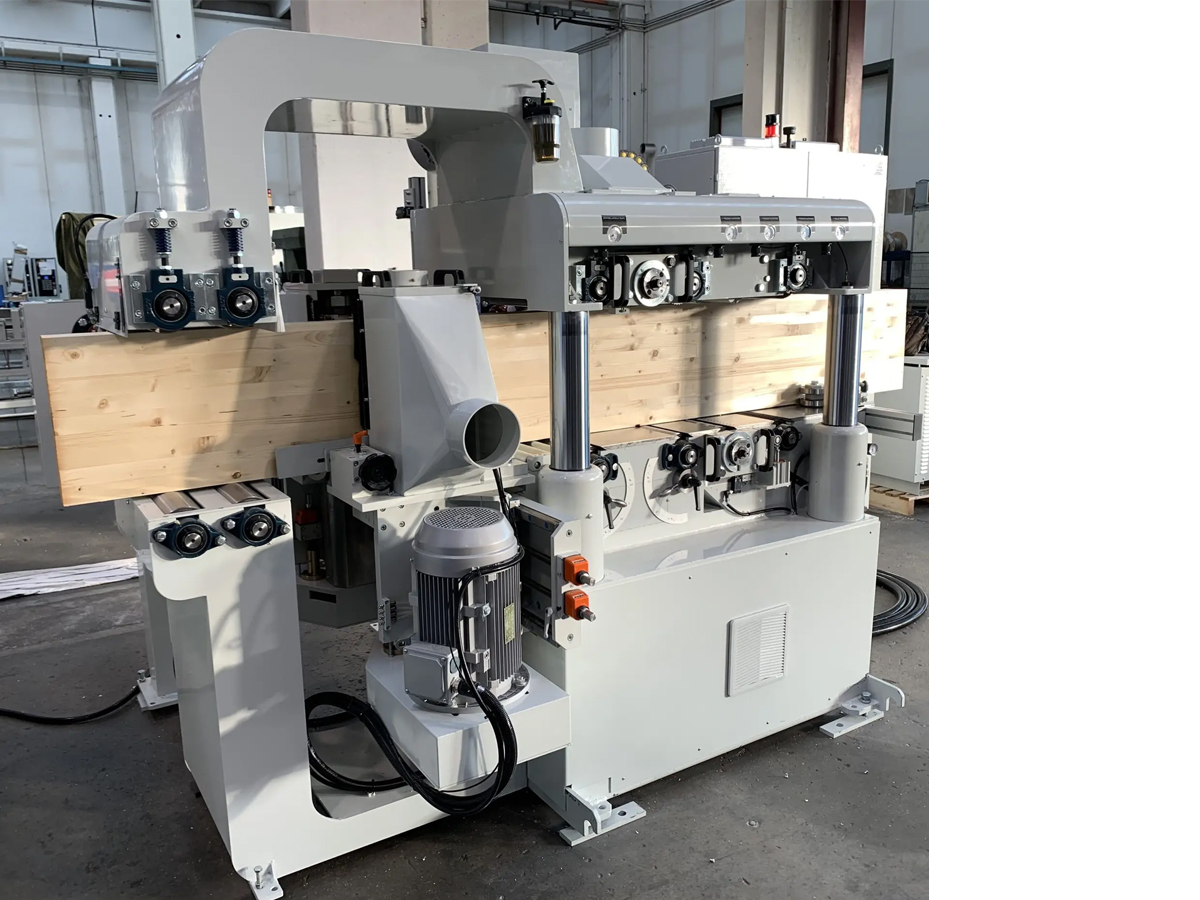

monoblock 5040 wd Machining up to 500 x 400 mm on 4 sides
Machining up to 1500 x 250 mm on 4 sides

Monoblock 3330 - WD.

Machining up to 330 x 300 mm on 4 sides

Machining up to 330 x 300 mm on 4 sides

Video

Technical details

Monoblock Series 330 3320 3325 3330
Minimum machining width 40 mm 40 mm 40 mm
Minimum machining height 15 mm 15 mm 15 mm
Maximum machining width 330 mm 330 mm 330 mm
Maximum machining height 200 mm 250 mm 300 mm
Maximum feed speed 60 m/min 60 m/min 60 m/min



Monoblock Series 500 5030 5040 5050
Minimum machining width 40 mm 40 mm 40 mm
Minimum machining height 20 mm 20 mm 20 mm
Maximum machining width 500 mm 500 mm 500 mm
Maximum machining height 300 mm 400 mm 500 mm
Maximum feed speed 30 m/min 30 m/min 30 m/min



Monoblock Series 700 7030 7040 7050
Minimum machining width 40 mm 40 mm 40 mm
Minimum machining height 20 mm 20 mm 20 mm
Maximum machining width 700 mm 700 mm 700 mm
Maximum machining height 300 mm 400 mm 500 mm
Maximum feed speed 30 m/min 30 m/min 30 m/min



Monoblock Series 1100 11025 11030 11040
Minimum machining width 40 mm 40 mm 40 mm
Minimum machining height 40 mm 40 mm 40 mm
Maximum machining width 1100 mm 1100 mm 1100 mm
Maximum machining height 250 mm 300 mm 400 mm
Maximum feed speed 20 m/min 20 m/min 20 m/min



Monoblock Series 1500 15025 15030 15040
Minimum machining width 40 mm 40 mm 40 mm
Minimum machining height 40 mm 40 mm 40 mm
Maximum machining width 1500 mm 1500 mm 1500 mm
Maximum machining height 250 mm 300 mm 400 mm
Maximum feed speed 20 m/min 20 m/min 20 m/min



Monoblock Series 2100 21025 21030 21040
Minimum machining width 50 mm 50 mm 50 mm
Minimum machining height 50 mm 50 mm 50 mm
Maximum machining width 2100 mm 2100 mm 2100 mm
Maximum machining height 250 mm 300 mm 400 mm
Maximum feed speed 20 m/min 20 m/min 20 m/min
