Description

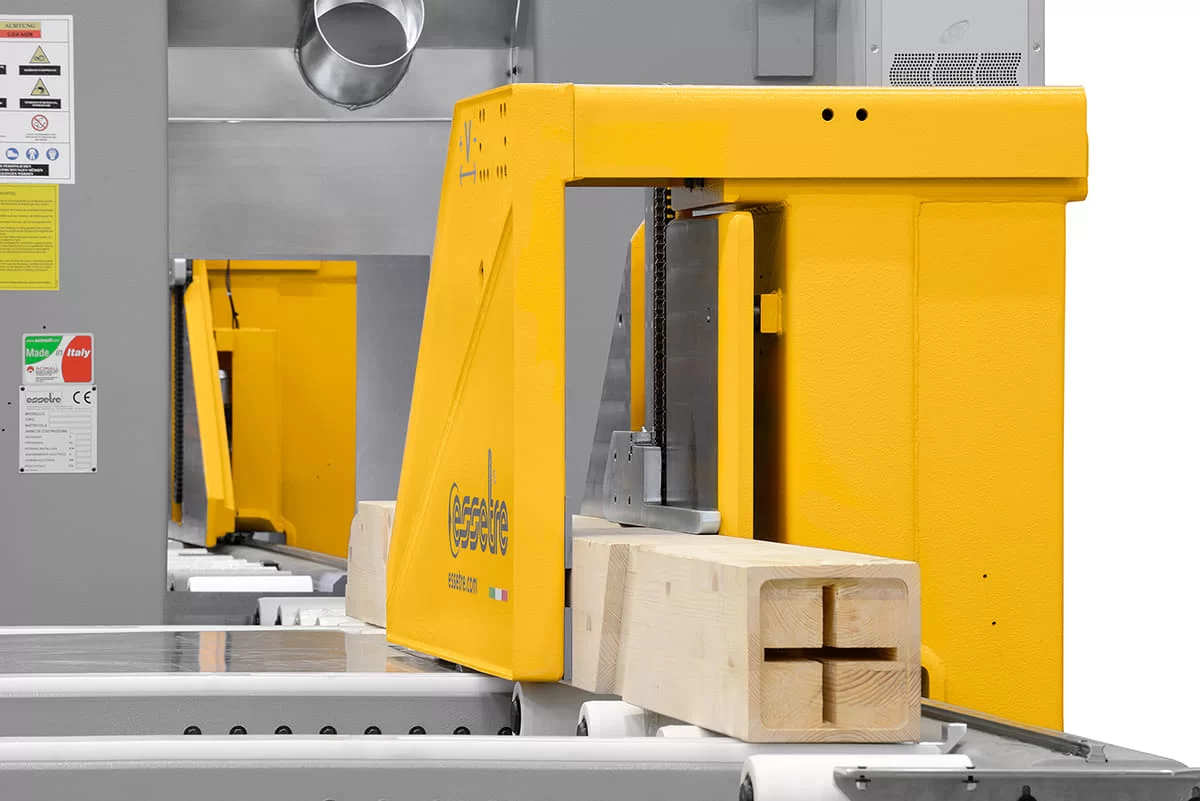

Beam handling system.
The processing takes place automatically thanks to a motorized loading system, which transports the beam on the loading roller conveyor integrated in the machine structure.
Two multifunctional clamps allow to move the beam in the working area, while the unload is done by means of a pneumatic ejector on a series of fixed supports, which are also integrated in the machine structure.

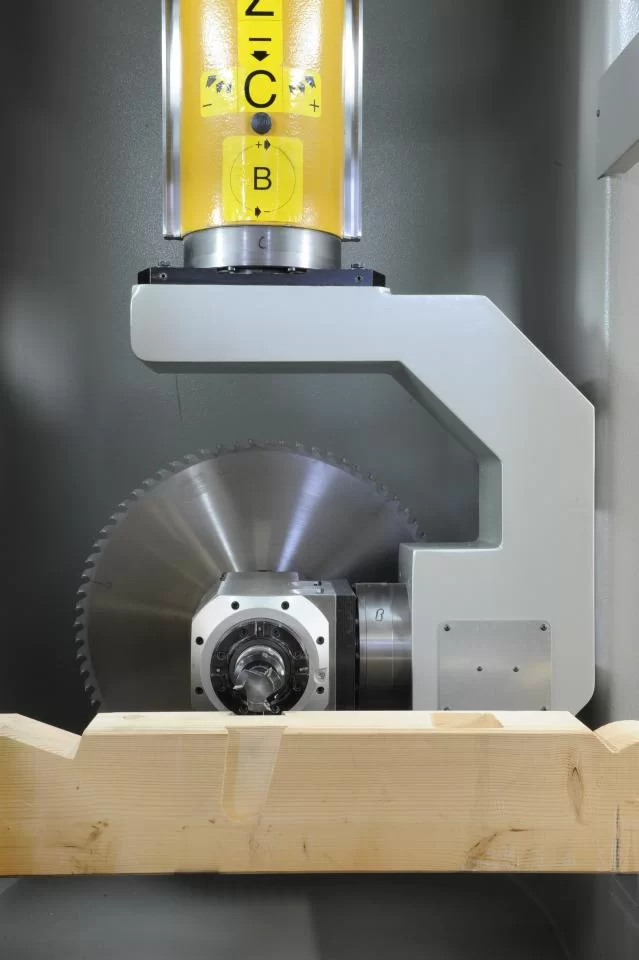

Working area.
The processes are performed by a 5-axis head with a dual output motor: one with HSK 63F tool connection for the automatic tool change; the other with a flange for the blade with a maximum diameter of 600 mm

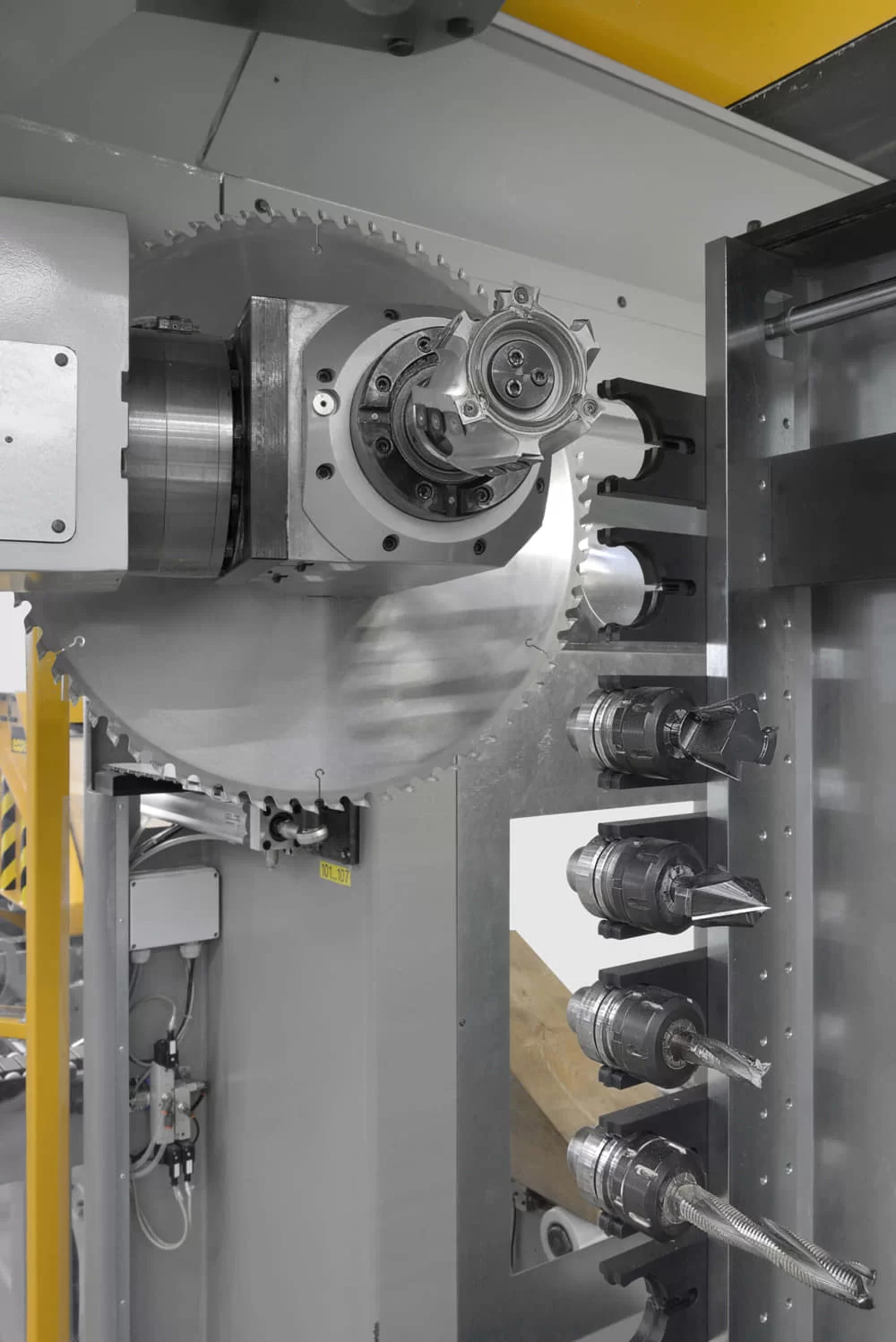

Tool holder magazine.
The 11-positions tool magazine has been installed on one side of the machine’s portal, in front of the working area, to allow fast and precise tool changes.

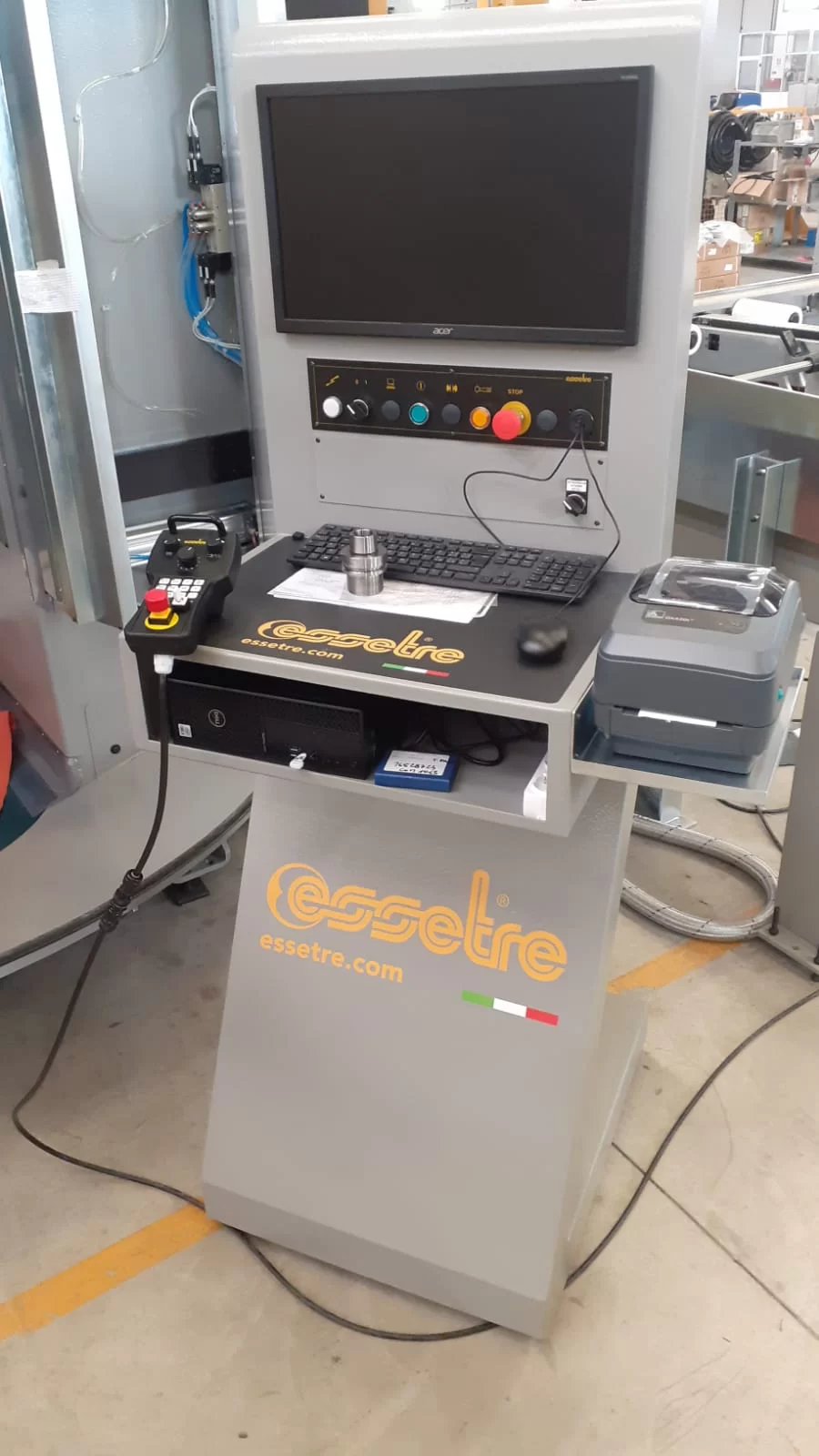

Console.
The control console complete with NC is installed on the machine structure through a hinge system, which allows it to be oriented in multiple positions.
A remote control panel is available complete with manual controls of the axis movement, START, STOP and RESET of the program.
E-live software.
The machine is controlled by the new Essetre E-Live Software, with three-dimensional display of the workpiece and relative processing. Its versatility allows it to interface with the most well-known Cad Cam programs specific for wooden structures.
The software is also equipped with a simulation and anti-collision system.
