Description

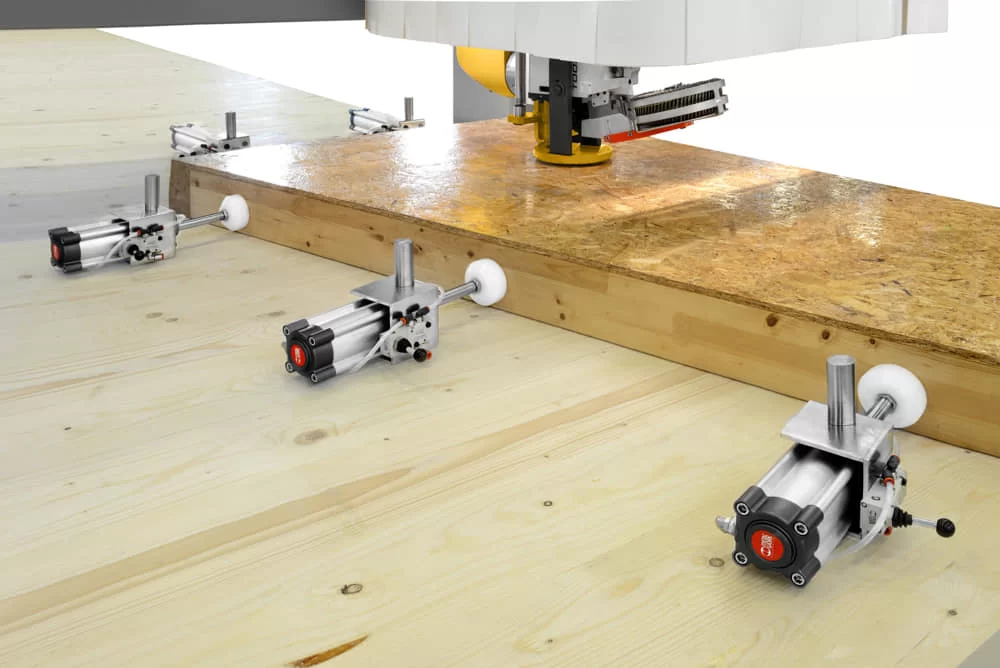

Beams locking system.
Flexible beams locking system for frame walls with pneumatic pistons.

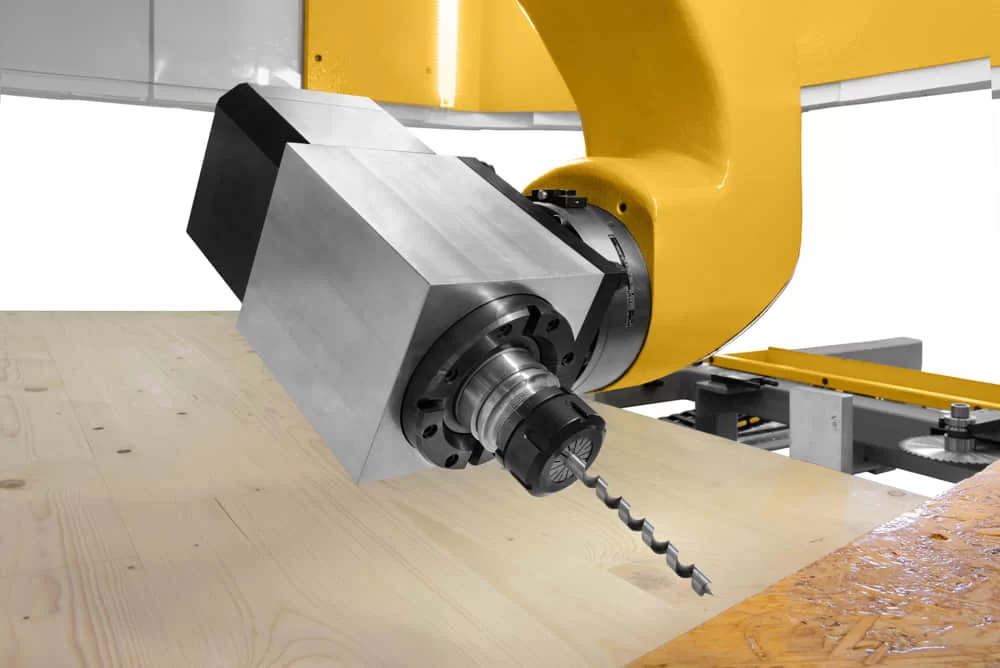

Millling unit.
5-axis milling unit with 11 Kw electrospindle with tool changing and automatic tool changing magazine from 4 to 8 positions.

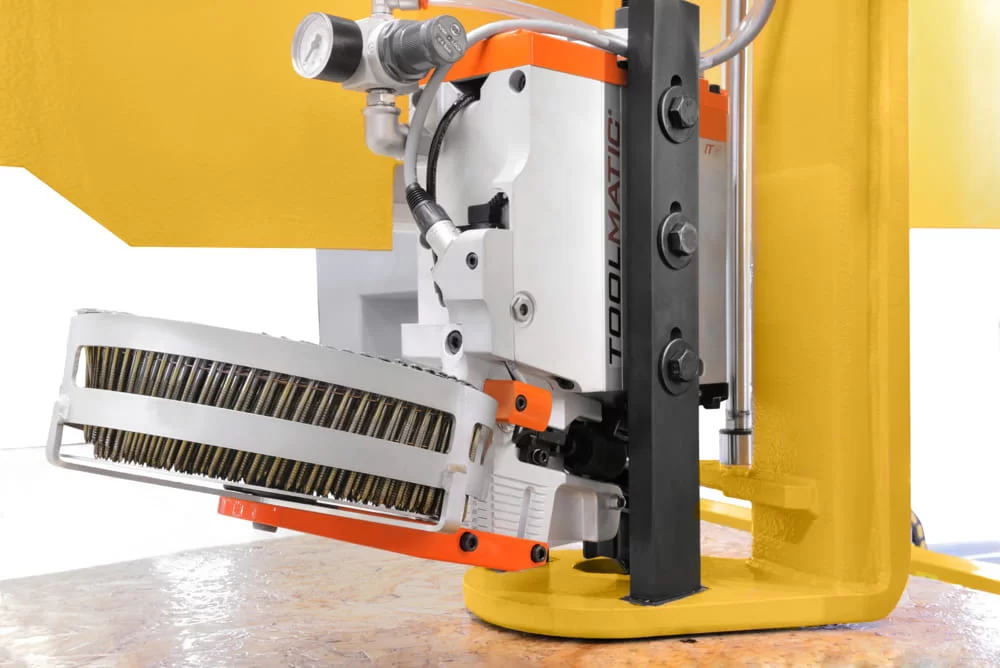

Stapling and nailing.
Integrated automatic group for stapling and nailing on the Z axis of the 5-axis head.

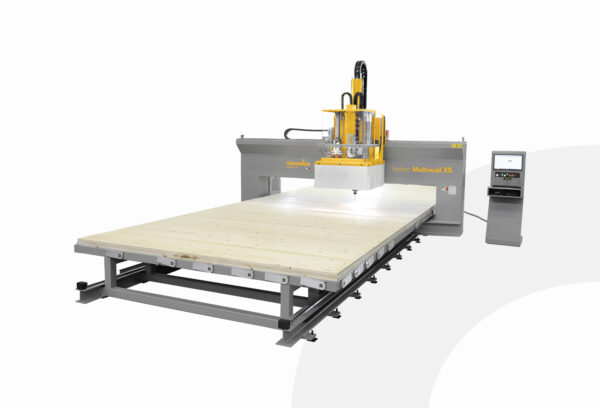

Wall working area.
The wall working area consists of a basement in electro-welded mechanical carpentry on which the mobile portal frame slides and on which different types of walls can be processed thanks to the many applicable options. It is also designed to convey chips onto a motorised conveyor belt.

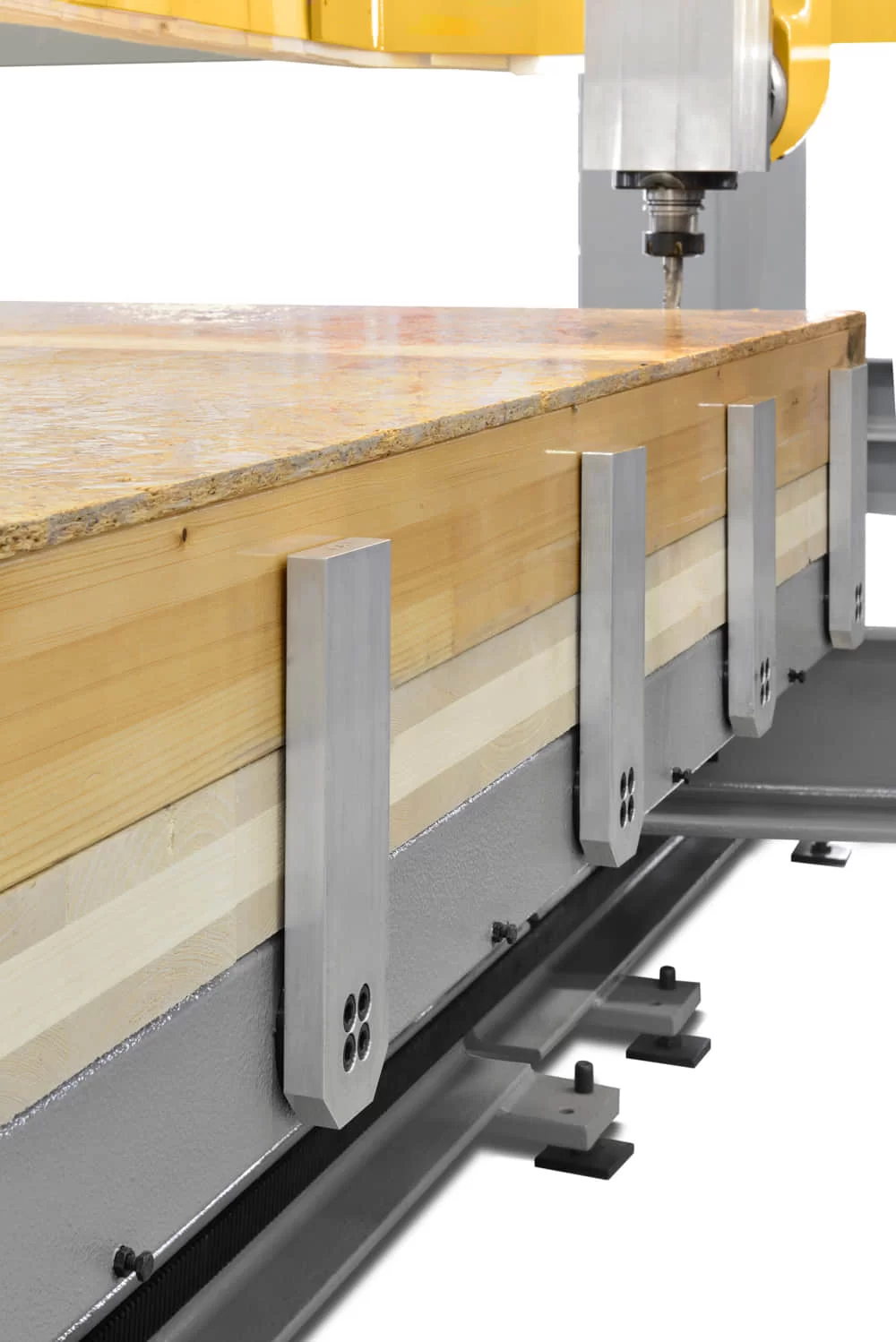

References.
Hiding references for the positioning of the walls.
Console.
The control console complete with NC is installed on the machine structure through a hinge system, which allows it to be oriented in multiple positions.
A remote control panel is available complete with manual controls of the axis movement, START, STOP and RESET of the program.
E-live software.
The machine is controlled by the new Essetre E-Live Software, with three-dimensional display of the workpiece and relative processing. Its versatility allows it to interface with the most well-known Cad Cam programs specific for wooden structures.
The software is also equipped with a simulation and anti-collision system.
