Description

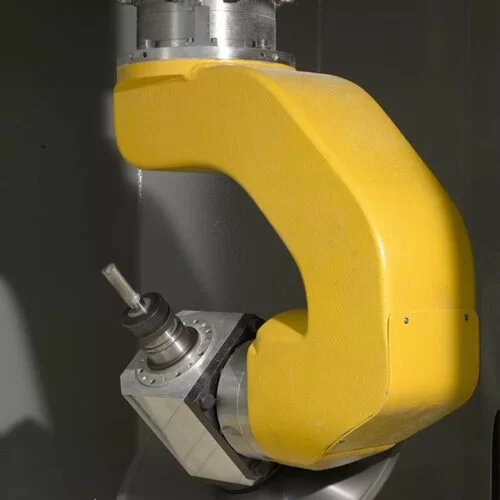

Milling head.
Patented milling head with 5 continuous interpolating axis for the processing of the 6 faces of the workpiece. Patented dual output motor with HSK63F tool holder.

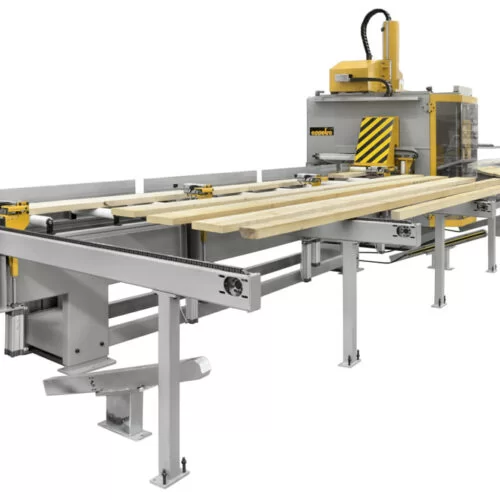

Loading area.
Additional loading area to process workpieces up to 13000 mm, consisting of 5 fixed supports on the machine structure equipped with motorized chains for the automatic loading of boards and beams on the loose rollers of the machine entry plan.

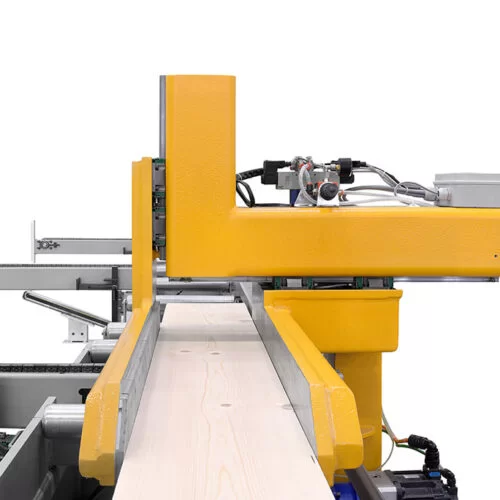

Automatic clamp.
Automatic clamp controlled by NC upon linear guides movement.

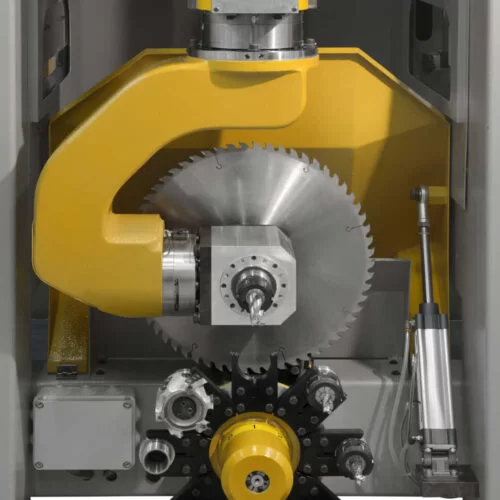

Tool magazine.
Rotative tool changing magazine with 8 positions for HSK63F cones, managed by a controlled axis. The magazine is installed on the front of the cabin, complete with automatic cover to keep cones and tools clean.
Tool holder magazine.

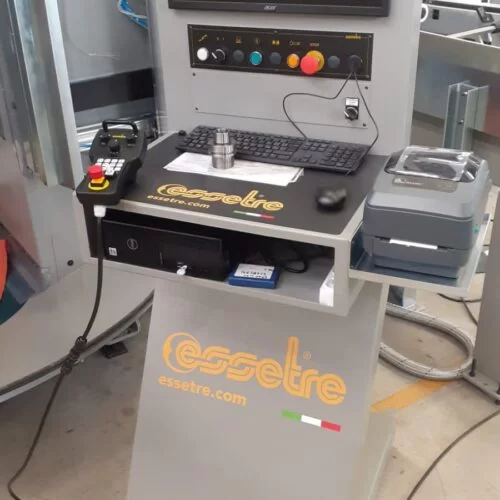

The control console complete with NC is installed on the machine structure through a hinge system, which allows it to be oriented in multiple positions.
A remote control panel is available complete with manual controls of the axis movement, START, STOP and RESET of the program.

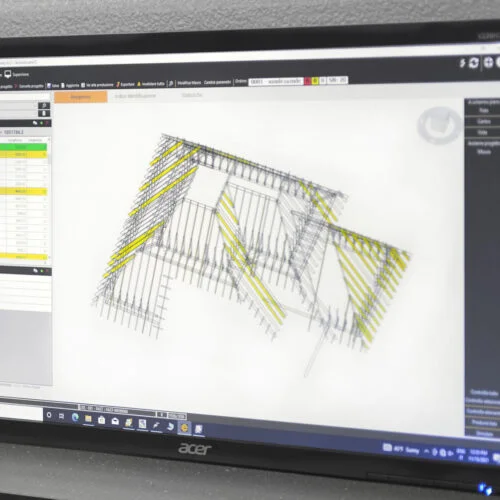

E-live software.
The machine is controlled by the new Essetre E-Live Software, with three-dimensional display of the workpiece and relative processing. Its versatility allows it to interface with the most well-known Cad Cam programs specific for wooden structures.
The software is also equipped with a simulation and anti-collision system.
