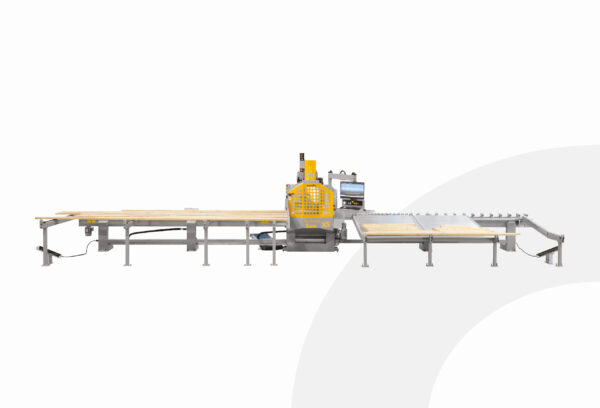

Techno Saw XS

Cutting centre to process small elements for frame walls and packaging

Cutting centre with 5-axis to process trusses and packaging elements with different inclinations. Maximum working section 305 x 120 mm.

Description

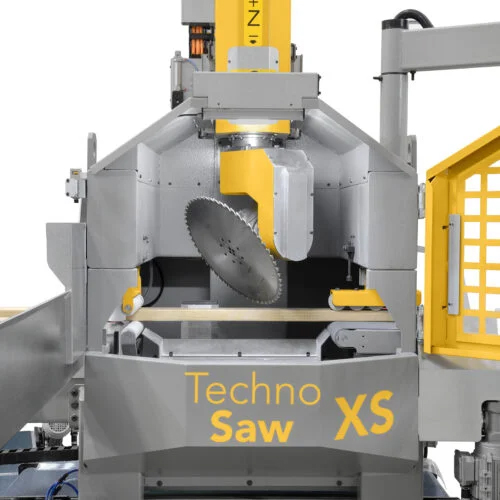

Working unit.

5-axis working unit with continuous interpolation with B-axis rotation of 180° and C-axis rotation of 360°. Motor power 11kW at 5000 rpm.

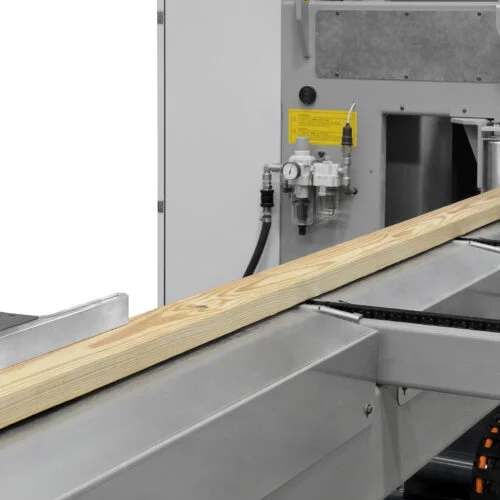

Loading clamp.

Automatic loading clamp managed by NC upon linear guides movement.

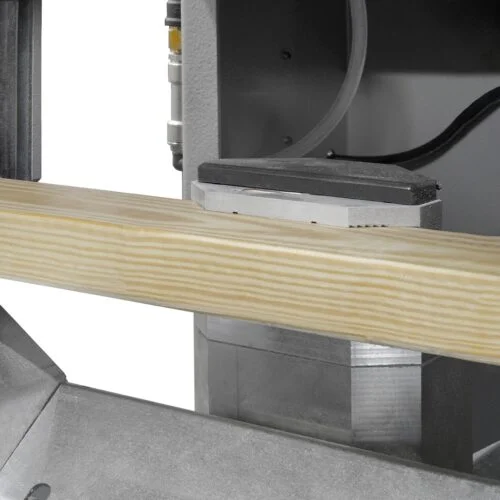

Locking clamp.

Patented automatic clamp to lock the workpiece in the working area during the processing of the operating unit.

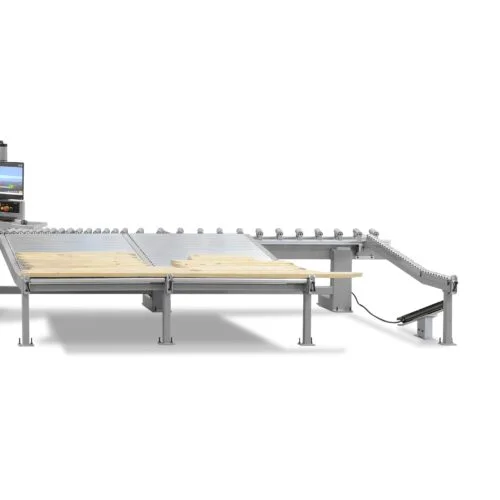

Automatic boards unloader.

Automatic unloading outfeed system to stock pieces for a length up to 6000 mm.

Video

Technical details

Maximum workable boards dimensions: length according to customer’s requirements (standard 6000) × 305 × 120 mm.

Controlled axes 6 (X – 2Y – Z – B – C)
Minimum dimensions section 50 × 20 mm
C-axis rotation 360°
B-axis rotation 180°
X-axis speed movement 100 m/min
Y-axis speed movement 150 m/min
Z-axis speed movement 50 m/min
Electric installation 400 V / 50 Hz / ±5%
Air consumption (7 bar) 300 l/min
Machine according to CE norms CE compliant
